Car Elevator manufacturer

Car Elevator Supplier in Delhi

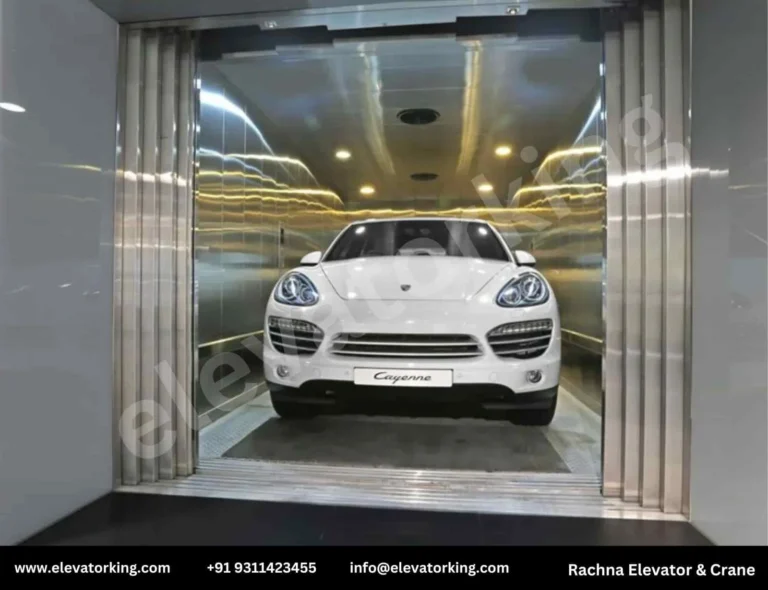

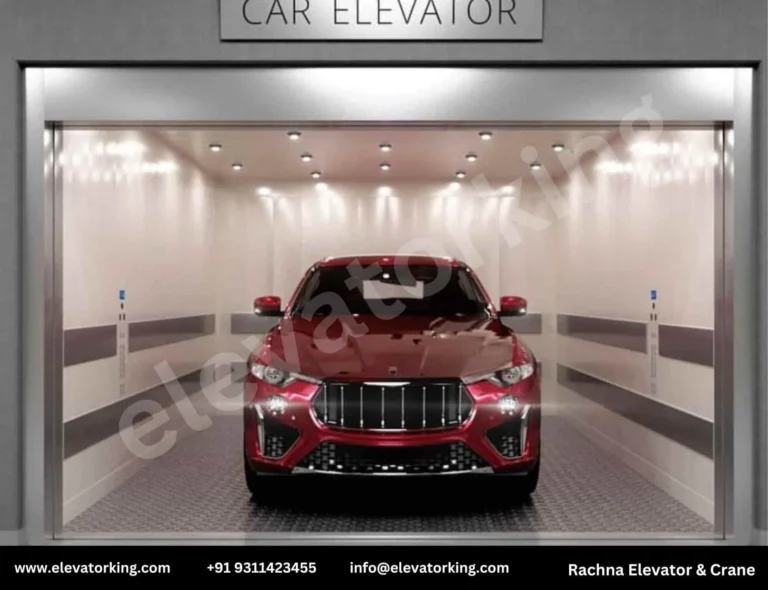

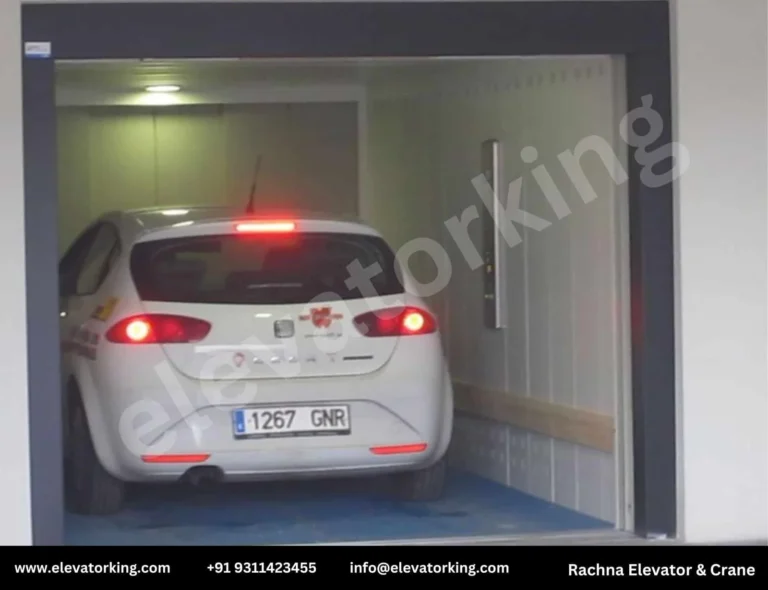

The Car Elevator is used to lift vehicles to the desired floor of a structure. It serves as a useful option for residential buildings, commercial buildings, car showrooms, hotels, and multi-level parking structures where construction of the traditional ramp system is not feasible due to lack of space.

Rachna Elevator & Cranes supplies custom-made car elevators as per the needs of the particular project. The design of the system is based on various parameters, including dimensions of the vehicle, weight capacity of the platform, height of the lift, and available space for the installation of the lift.

As a professional Car Elevator Manufacturer, we provide various configurations of the lift system to satisfy the needs of vehicle movement in both residential and commercial constructions.

Why choose us?

We have been in this business for over 45 years. Our company is known as a reliable Car Lift Supplier in India, and we provide practical solutions to several projects with different structural and spatial considerations.

All our installations are done after analysing many aspects, which include the weight of the car, platform size, floor height, access conditions, and overall site planning. We make sure that we only use the best quality materials with all necessary safety measures so that it can work properly.

Our team shall work with you on each stage of your project, from consultation to installation. We make sure that an effective Car Elevator solution is provided to you.

FEATURES: -
  • Digital Car Position Indicator shows the cabin position on all the floors.
  • UP/DN Indicator shows the direction in which the cabin is moving.
  • Voltage Protection: Upper and lower limits can be defined in each phase (220V) instead of consolidated 3-phase (440 V). This means maximum safety.
  • Over & Under Load protection can be defined by ampere setting in individual phase.
  • Phase Preventer saves electrical parts when the single- or two-phase supply is out of supply.
  • Phase Sequence Corrector / Auto Phase Changer automatically corrects the phase polarity when the phase in the supply gets changed.
  • MFFS (Magnet Floor And Final Sensing with the help of REED sensor) latest upgrade of limit switch (old & traditional technology). Though Reed sensor works on sensing technology instead of physical contact, their life is very high. Also, the accuracy of the same is unmatched.
  • Special M.C.B. developed for Rachna Elevator & Cranes to provide final safety in case of malfunctioning in the panel.
  • A buffer is provided in the pit to protect the cabin from damage.
  • Doors: Collapsible.
  • Maximum opening after the bunch.
  • Emergency Stop button is provided on all floors to stop the cabin in case of emergency.
  • Electrical Mechanical Door Lock: -
    Ø  Door will not open during the lift movement.
    Ø  Door will open only on the floor where the cabin lands.
    Ø  Until all the gates are closed, the lift will not move.
  • Over Speed Governor stops the lift in case of free fall of the cabin by applying mechanical brake / safety dogs. This comes with a counterweight.
  • Following features come with counterweight and Hydraulic Type:
    Ø  LIGHT
    Ø  FAN
    Ø  MUSIC ON TRAVEL
    Ø  VOICE ANNOUNCEMENT
  • ARD: Auto Rescue Device is used for rescuing the passenger who got stuck in the Elevator due to Emergency, breakdown, Electricity Failure and Maintenance. It opens the door after landing the Elevator on the nearest floor

Get A Quote

Advanced Car Elevator Technology

Engineered for efficiency, safety, and durability—our Car Elevator solutions deliver high performance with lower maintenance and cost savings.

Car Elevator Counter Weight Type With Machine Room
Product details:

Car Elevator Counterweight Type With Machine Roomis a bit expensive. In this type Geared traction machine is used in which motor is coupled to a worm which transmit the motion to the pulley / sheave through worm gear. The sheave moves the wire rope in a to-and-fro motion, with one end tied to the cabin & the other tied to the counterweight. In this system machine is installed in the machine room.

Advantage
  • Moderate cost
  • Higher speed
  • Higher safety
Car Elevator Counter Weight Type Without Machine Room / MRL
Product details:

Car Elevator Counter Weight Type Without Machine Room / MRL is a bit expensive. In this type Geared traction machine is used in which motor is coupled to a worm which transmit the motion to the pulley / sheave through worm gear. The sheave moves the wire rope in a to-and-fro motion, with one end tied to the cabin & the other tied to the counterweight. In this system, the machine is installed in the shaft on an I-beam instead of the machine room.

Advantage
  • Moderate cost
  • Higher speed
  • Higher safety
Hydraulic Car Elevator Hole Type
Product details:

Hydraulic Car Elevator Hole Type is the safest technology. It works in such a manner when oil push in the cylinder with the help of power pack piston moves up which rise the cabin. On another side by just releasing the wall oil from the cylinder come back in the power pack which lower down the cabin. In this system, a hole is drilled in the pit where the cylinder is to be installed.

Advantage
  • Security & Privacy: The whole system is installed on the initial level, so maintenance people won’t have to move up.
  • Half Running Cost: It consumes energy in the upward direction only.
  • Heavy load capacity
  • No load on the walls
  • Cost Saving
     Doesn’t require heavy structure (column, beam, pillar) because the machine is not installed on the top. That means huge savings on construction cost.
     No overhead & Machine room required means huge cost savings in construction and in the exterior also.
    As there is no overhead and machine room, now roof top can be used which was earlier not possible because of no lift opening over there.
    Though the panel is installed on the initial level instead of the top floor or in the machine room, wiring expense for 3-phase and earthing connection will be saved

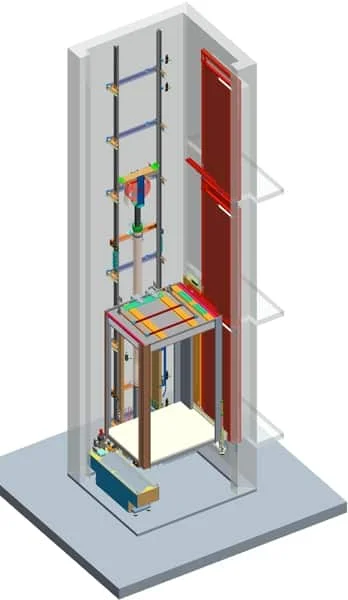

Hydraulic Car Elevator Hole Less Type
Product details:

TheHydraulic Freight Cum Passenger Elevator Hole Less Type is safest technology. It works in such a manner when oil push in the cylinder with the help of power pack piston moves up which rise the cabin. On another side by just releasing the wall oil from the cylinder come back in the power pack which lower down the cabin. In this system cylinder installs on the parallel of the wall.

Advantage
  • Moderate cost
  • Higher speed
  • Higher safety
Smart Structure. Strong Support.

Structure Elevator

If there is no shaft to put the elevator, either inside the building or outside the building, a structure can be fabricated to put the elevator. Structure can be covered by any material (GP sheet / Glass / Fiber etc.)

100% Safe & Reliable

Engineered for safety with high-quality materials.

Time Saving

Prefabricated structure ensures faster installation.

100% Space Efficient

Self-supporting structure saves valuable space.

Cost Effective

Minimal civil work required, reducing overall cost.

OUR INSTALLATIONS

See Our Lifting Solutions in Action

From concept to completion, watch how we deliver safe, reliable, and efficient lifting solutions across diverse industries.

HYDRAULIC ELEVATOR HOLELESS TYPE
▶
HYDRAULIC ELEVATOR HOLELESS TYPE

Holeless Hydraulic Elevators don't require a drilled hole, making this type of elevator ideal for existing buildings or in areas.

GEARLESS ELEVATOR WITHOUT MACHINE ROOM
▶
GEARLESS ELEVATOR WITHOUT MACHINE ROOM

Gearless Elevator will have a wheel attached on to motor and it's capable of working at the speed of 2 ,000 feet per minute.

HYDRAULIC ELEVATOR HOLE TYPE
▶
HYDRAULIC ELEVATOR HOLE TYPE

Hydraulic elevator hole type are elevators which are powered by a piston that travels inside a cylinder. The piston smoothly lifts the elevator cab.

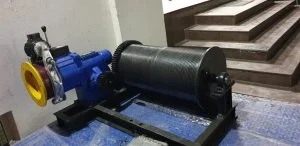

DRUM TYPE ELEVATOR WITH MACHINE
▶
DRUM TYPE ELEVATOR WITH MACHINE

In Drum Type with Machine, the rope winds on the drum when the cabin moves upward and unwinds from the drum.

GEARLESS ELEVATOR WITHOUT MACHINE ROOM
▶
GEARLESS ELEVATOR WITHOUT MACHINE ROOM

Gearless Elevator will have a wheel attached on to motor and it's capable of working at the speed of 2 ,000 feet per minute.

OUR CLIENTS

Trusted by Leading Brands

COMMON QUERIES

FAQs

What is a freight cum passenger elevator?

 freight cum passenger elevator is a dual-purpose lift system designed to handle the substantial weight and volume of freight while providing the necessary safety and comfort features for passengers.

Where are freight cum passenger elevators commonly used?

What safety features are included in these elevators?

Can freight elevators be used to transport passengers?

How do freight elevators differ from passenger elevators?

Are there regulations governing the use of freight elevators for passengers?

Which hydraulic passenger lift is best for small hotels?

What is the price of a goods cum passenger lift for factories?

Can a service elevator carry both goods and people?

What is a Hydraulic Freight Elevator Hole Less Type?

Is a hydraulic passenger lift suitable for warehouses?
